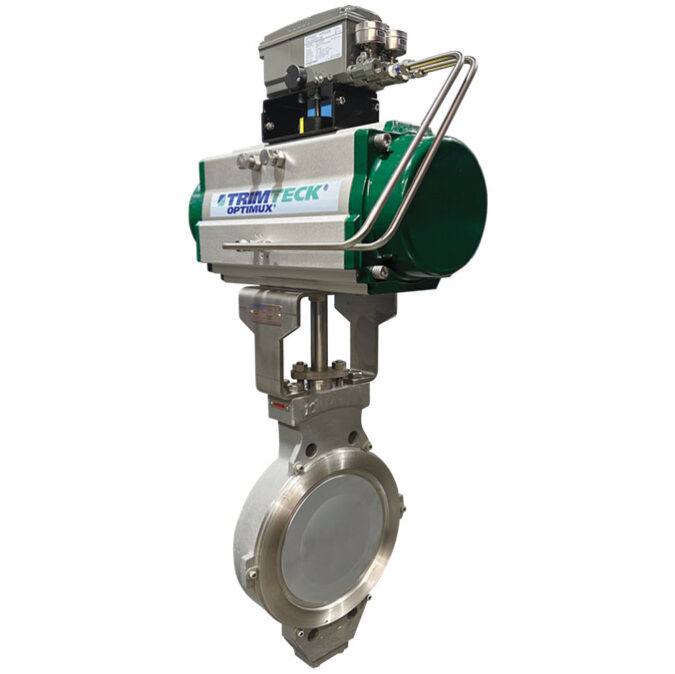

The OpTE high performance Triple Eccentric, or Triple Offset, Butterfly Valve is a robust isolation valve providing absolute zero leakage. Originally designed for steam isolation applications ranging from vacuum to high-pressure, the OpTE is now commonly used in liquid as well as gaseous services. The triple offset disc design is torque-seated and inherently fire-safe. Trimteck specializes in modifications of this design to handle extreme temperatures.
| Control Valve Type | |
|---|---|
| Sizes (NPS) | 2", 3", 4", 6", 8", 10", 12", 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 42″, 46″, 48″, 52″, 56″, 60″, 64″ |
| Body Materials | |
| Body Styles | Long Pattern, Short Pattern, Vacuum Jacketed, Steam Jacketed |
| Motion | |
| Disc & Shaft Materials | 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel, Nitronic, WCB Carbon Steel |
| Seat Materials | Graphite, Inconel, Kel-F, PEEK, PTFE, Stainless Steel |
| Pressure Class (ASME/ANSI) | |
| Shutoff Class (ANSI) | |
| End Connections | |
| Service | |
| Operating Temperature | |
| Flow Characteristic | |
| Industries | Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining |
| Standards & Norms |
